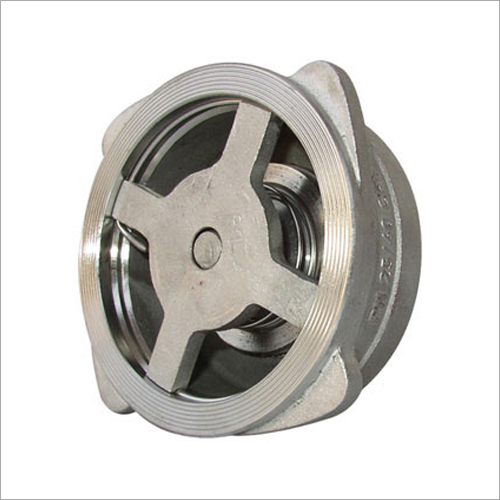

Industrial Disc Check Valve

Industrial Disc Check Valve
Industrial Disc Check Valve
Product Code : 07
Product Description

Industrial Disc Check Valve

Our organization is actively devoted towards offering a huge gamut of excellent quality Industrial Disc Check Valve. Our offered disc check valve is highly demanded in the market for its remarkable features like sturdy design, easy installation and low maintenance. Also, our provided disc check valve is stringently inspected on well-defined parameters of quality to ensure their flawlessness. The offered Industrial Disc Check Valve work with power plants and chemical industry to regulate the stream of any kind of fluid.

Features:

  • Corrosion confrontation
  • Needs less maintenance
  • Toughness
  • Simple installation

Salient Feature

  • DCVs are simple to fit between two pipe flanges.
  • Spring loaded disc to prevent reverse flow in pipe lines.
  • Stronger, lighter and smaller than Conventional Swing Check Valves, hence less
  • Expensive to install and maintain.
  • Compact Design of valves flexibility accommodates various types of flange selection.
  • The Valves can be fitted in any plane/direction in pipe lines.
  • Available in 15mm to 150mm sizes.
  • Extremely low operating Pressure.
  • Self centering type design.
  • Zero leakage for soft seated Valves.
  • Design: Manufacturers Standard.
  • Testing: As Per API 598.

APPLICATIONS:-

  • Air, Gas & Vaccum Services.

SIZE RANGE: ½" TO 6"

TECHNICAL SPECIFICATIONS

Body Construction

S.S., ASTM A 351 Gr. CF8 / CF8M.

Disc

ASTM A 216 Gr. WCB.

Spring

AISI 304 or AISI 316 (Bar Stock).

Spring Retainer

Standard.

Disc Seat

AISI 304 or AISI 316.

Pressure Rating

Metal to Metal, EPDM/Nitrile - soft seated for water and silicon / viton - soft seated for oil & gases. PN - 40.

Flange Standard

1) B.S. 10 Table D,E & H (65NB & 80NB will not be fitted between 'E' flanges).

2) DIN: PN6, 10, 16, 25, 40.

DIMENSION

Valve Size

Valve Size

PORT

T

15mm

15mm

15

17

20mm

20mm

20

20

25mm

25mm

25

23

32mm

32mm

32

28

40mm

40mm

40

32

50mm

50mm

50

40

65mm

65mm

65

46

80mm

80mm

80

50

100mm

100mm

100

60

150mm

150mm

150

105
