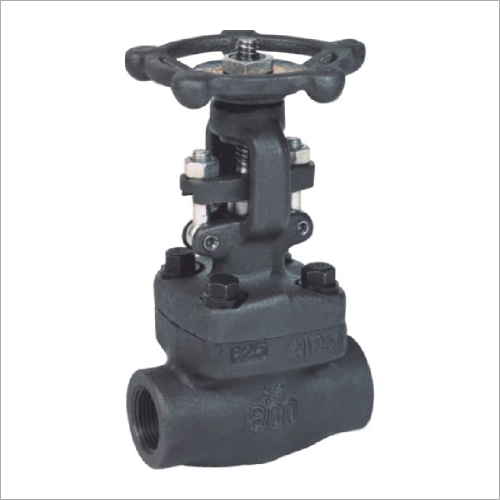

Industrial Forged Valve

Industrial Forged Valve
Industrial Forged Valve
Product Code : 05
Product Description

Industrial Forged Valve

Application

  • Refineries.
  • Petro-Chemical Plants
  • Fertilizer Plants.
  • Thermal Power Station.
  • Other process Industries.

Salient Feature

  • Outside Screw and Yoke type Bolted Bonnet Design For Up to Class 800.
  • Screwed With Seal-Welded Body-Bonnet Design For Valves Class 1500#, 2500#.
  • Meet design as per manufacture standards. Gate valves B.S. 5352 / API 602, Globe & Lift Check Valve as per B.S. 5352.
  • Testing As per API 598 / B.S. 6755.
  • Rating: 800#, 1500#, 2500#.
  • Cryogenic Gate / Globe As Per BS 6364
  • M.O.C:- Available drop in ASTM A105, ASTM A182 Gr.F-11, ASTM A 182 Gr.F-22, ASTM A350 Gr. LF-2, ASTM A 182 Gr. 304/ F 304L/ F 316 /F 316L/ NACE MR-0175 Other Alloy Materials on Request.
  • Extended Gland Provided for Low Temperature and Cryogenic services. (Cold Box & Non Cold Box Applications) to conform to Requirement of B.S. 6364.
  • Specially designed Die Formed Graphite Packing, Controlled Clearances between Stem, Gland and Back Seat for Guaranteed Low Emissions meet 100 PPM maximum Fugitive Emission levels.
  • Easy Access to Stuffing-box.
  • Back Seating Surface Provided Integral to Bonnet.
  • Screwed Ends As per ASME B.S. 20.1 /ASME B.S. 21 / I.S. 554 / 554T
  • Socket Ends As Per ASME B 16.11 / I.S. 4712
  • Butt weld Ends As Per ANSI B 16.25.

TEST PRESSURE



HYROSTATIC

AIR

CLASS

BODY

SEAT & BACKSEAT

SEAT


PSI

Kg/Cm²

PSI

Kg/Cm²

PSI

Kg/Cm²

800

3000

211

2000

141

100

7

1500

5332

375

3896

274

100

7

2500

8831

621

6484

456

100

7
