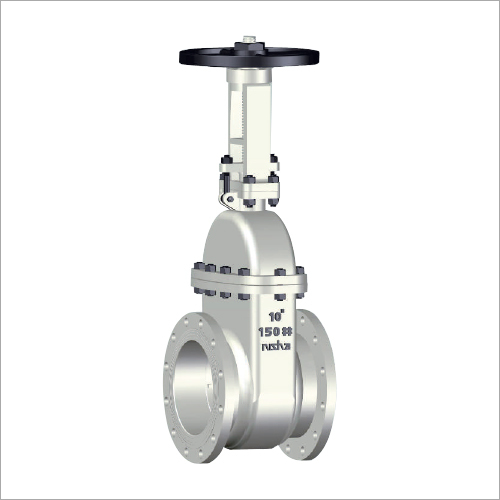

Industrial Gate Valves

Industrial Gate Valves
Industrial Gate Valves
Product Code : 03
Product Description

Industrial Gate Valves

With our rich industry experience, we are engaged in offering our clients a wide range of Industrial Gate Valves. The offered gate valve is basically designed for shut-off or permitting the flow of fluids in process applications. The offered gate valve is widely used in diverse industrial sectors like pharmaceutical, chemical, oil & gas, petrochemical, and other related places. Our customers can avail this Industrial Gate Valves from us in varied technical stipulation as per their specific need.

Temperature LImits

Shell Matt.

Lower limit

Upper limit

ºF

ºC

ºF

ºC

Cast Lron (Graded)

-20

-5

410

210

A216 GR WCB

-20

-10

650

343

A352 GR LCB

-50

-46

800

470

A351 GR CF8

-425

-254

850

454

A351 GR CF8M

-425

-254

1500

816

APPLICATION

  • Petrochemical Industries
  • Pharmaceutical Plants
  • Oil Industries
  • Petroleum Refinery
  • Power Plants
  • Thermal & Gas
  • Fertilizers & Agro Chemicals
  • Steel Plant
  • Paper Industries
  • Cement Industries
  • Cryogenic Services

SALIENT FEATURE

  • Meets design requirement of ASME B 16.34 / API 600/ API603 /API 6D and testing requirement API 598 / BS 6755/ API6FA/ ISO 5208.
  • Outside Screw and Yoke Construction.
  • Valves provided with back seating arrangement.
  • Solid, flexible, split wedge and parallel slide are available.
  • Renewable, seal welded seat ring or integral seat ( Cast SS. only ) available.
  • Specially designed die formed graphite packing, controlled clearance between stem, gland and bonnet bushing for guaranteed low emissions meet 100 PPM maximum fugitive emission levels.
  • Anti - friction ball thrust bearing in yoke sleeve for higher size and classes
  • Grub Screw: Secures yoke nut in the bonnet
  • Gress Nipple: Supplies lubricant to the mating parts
  • Flanged End or butt welding end
  • Flanged end dimensions conform to ANSI / ASME B 16.5 / API 605/ DIN BS 3293
  • Butt welding end dimensions conform to ANSI / ASME B 16.25
  • Face to Face and End Dimensions conform to ASME / ANSI B 16.10 DIN / BS 2080
  • Bi - directional shut-off
Dimension Meter

Size

inch

2

2.5

3

4

5

6

8

10

12

14

16

18

20

24

26

28

30

32

36

40

42

L

mm

178

191

203

229

254

267

292

330

356

381

406

432

457

508

559

609

609

660

711

812

860

#L1 BW

mm

216

241

282

305

381

403

419

457

502

572

609

660

711

813

863

914

914

965

1016*

1066*

1143*

H

mm

425

435

535

600

705

800

1010

1250

1385

1575

1825

1950

2080

2425

2750

3175

2825

3473

3600

4100

4500

K

mm

200

200

250

250

300

300

350

450

500

600

600

350*

400*

400*

450*

500*

450*

500*

500*

500*

550*

Wt.approx

kg

22

29

37

56

84

83

138

210

310

450

565

740

927

1125

1425

1550

1950

2200

3050

3265

4250
