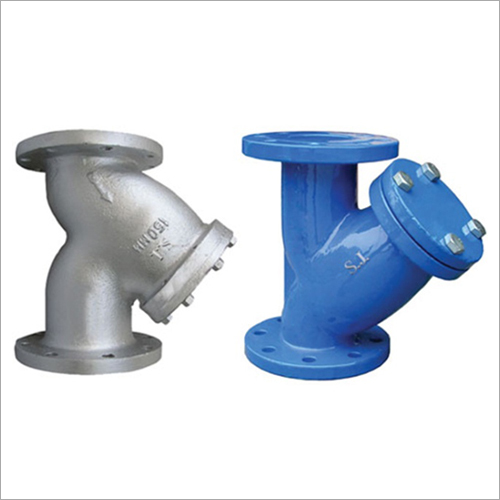

Industrial Strainer

Industrial Strainer
Industrial Strainer
Product Code : 11
Product Description

With highly driven technical excellence, our organization is highly committed towards offering Industrial Strainer. Designed and manufactured utilizing the premium grade raw material in compliance with the industry standards, offered strainer is obtainable in different specifications to meet the varied necessities of our clients. Additionally, this Industrial Strainer is meticulously tested by our quality experts on various parameters of quality. Our customers can avail this strainer from us at the most reasonable price

Features:

  • Sturdy construction
  • Pressure resistance
  • Optimum strength
  • Compact design

  Specification

No.

PART NAME

MATERIAL

1

BODY

C.I. / WCB / CF8 / CF8M Etc.

2

COVER

C.I. / WCB / CF8 / CF8M Etc.

3

SCREEN

S.S. 304 / S.S.316 PERFORATED

4

BOTTOM PLATE

M.S. / S.S.

5

GASKET

SPW. S.S.304 + CAF / PTFE FILLER

6

LIFTING HOOK

STEEL

7

COVER STUDS & NUTS

ASTM A - 193 Gr. B7 & 194 Gr. 2H / ASTM A - 193 Gr. B8 & 194 Gr. 8

8

BOTTOM STUDS & NUTS

ASTM A - 193 Gr. B7 & 194 Gr. 2H / ASTM A - 193 Gr. B8 & 194 Gr. 8

9

DRAIN PLUG

STEEL


DIMENSIONS

CLASS : 125# & 150#

SIZE IN INCH

80MM

100MM

150MM

200MM

250MM

300MM

F/F IN MM

460

515

620

685

730

840

H1 (APPX)

480

530

600

635

725

730

Salient Feature

  • Pipe Line Strainers Design code Mfg. Std. (NVIL).
  • Free Flow Area Minimum Three times across Sectional area of Inlet Pipe.
  • Fine Finish & Smooth Contours to reduce the Pressure drop in Strainer.
  • Bolted Body With Cover.
  • Removable filtering Screen elements.
  • Drain Plug is provided in Larger Size to Drain the Foreign particles accumulated in the strainer.
  • Face to Face Dimensions As per NVIL.
  • Flanged Ends Dimensions Confirms to ANSI B 16.5/ ANSI B 16.1 / BS 10 – Table- "D" & "F" / PN-16 / PN-40 / JIS / IS.
  • Screwed Ends to BSP / BSPT / NPT.
  • Socket Weld Ends to ANSI B 16.11.

SIZE :-

  • 1" (25MM) to 36" (900MM).

CLASS :-

  • 125# / 150# / 300# / 600# / PN-40 / PN-16 / Table - "E" & "F".

APPLICATION :-

Water Handling, food Industry, Marine industry, Process Equipment, Paints, ink & latex, Electric utilities, Pharmaceuticals & Cosmetics, Refrigeration Plant, Petroleum, Pulp & Paper, Chemical Processing, Power Plant, Petrochemicals, Allied industries etc.

DIMENSIONS


CLASS : 125# & 150#


SIZE IN INCH

25MM

40MM

50MM

65MM

80MM

100MM

125MM

150MM

200MM

250MM

300MM

F/F IN MM

160

200

230

290

310

350

400

480

600

673

775
