Industrial Swing Check Valve

Industrial Swing Check Valve
Industrial Swing Check Valve
Product Code : 06
Product Description

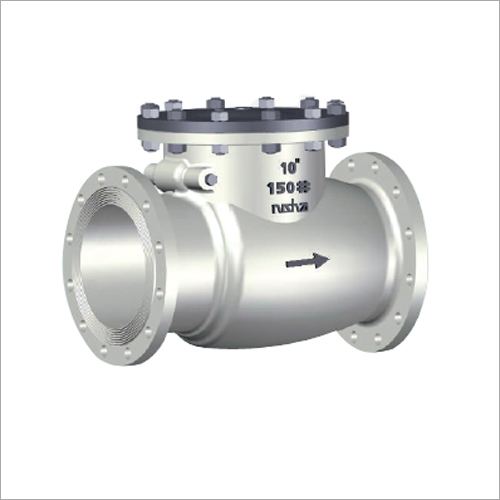

Industrial Swing Check Valve

Backed by a team of highly dedicated and devoted professionals, we are committed to provide a wide spectrum of Industrial Swing Check Valve. The offered swing check valve is manufactured utilizing high grade raw material and latest techniques in varied specifications for our customers to choose from. This swing check valve is most commonly utilized in chemical plants, irrigation fields and pumping systems. Further, clients can avail this Industrial Swing Check Valve from us at affordable prices.

Features

  • Sturdy construction with long operational life
  • Ability to withstand high temperature
  • Regulate the flow of fluids
  • Excellent protection against the accidents due to high pressure environment

Temperature LImits

Shell Matt.

Lower limit

Upper limit

ºF

ºC

ºF

ºC

Cast Lron (Graded)

-20

-5

410

210

A216 GR WCB

-20

-10

650

343

A352 GR LCB

-50

-46

800

470

A351 GR CF8

-425

-254

850

454

A351 GR CF8M

-425

-254

1500

816

APPLICATION

  • Petrochemical Industries
  • Pharmaceutical Plants
  • Oil Industries
  • Petroleum Refinery
  • Power Plants
  • Thermal & Gas
  • Fertilizers & Agro Chemicals
  • Steel Plant
  • Paper Industries
  • Cement Industries
  • Cryogenic Services

SALIENT FEATURE

  • Meets design requirement of ANSI B 1634/ BS 1868/ API 60/ ISOI4813 and testing requirement of BS 6755 and API GD API598/ ISO 5208
  • Close filling male and female joint retains gasket in position and accurately centers the working parts
  • To ensure long and trouble free valve performance, seating surface are accurately machined, precisely aligned, and perfectly lapped
  • Removable, seal welded seat ring or integral seat (Cast SS only) available
  • Flanged end or Butt-welding end. Flanged and dimensions conform to ANSI 316.5 / API605 BS 3293/ DIN / ISO 7005-1
  • Butt welding end dimensions to ANSI/ASME B 16.25
  • Face to face and End to End dimensions conform to ANSI
  • 316.10 / BS 2080 / DIN

DIMENSION

Size

inch

2

2.5

3

4

5

6

8

10

12

14

16

18

20

24

L,#L1

mm

203

216

241

292

330

356

495

622

699

787

864

977

977

1295

H

mm

155

190

200

225

245

260

305

390

410

435

530

570

625

675

Wt.approx

kg

18

25

34

46

75

89

120

220

337

471

575

788

916

1275
