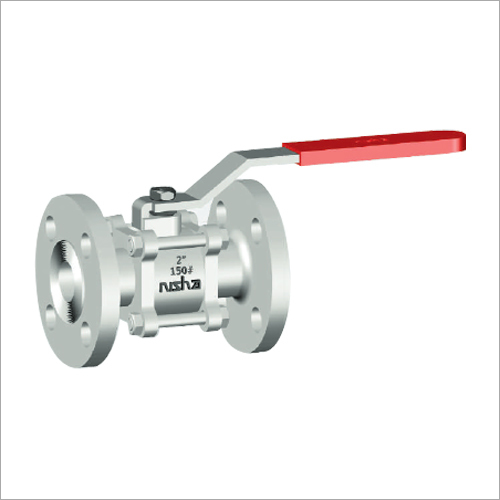

Industrial Three Piece Ball Vave

Industrial Three Piece Ball Vave
Industrial Three Piece Ball Vave
Product Code : 01
Product Description

Keeping in mind the precise demands of our esteemed clients, we provide Industrial Three Piece Ball Vave. The offered ball valve is developed with high precision utilizing the optimum quality metal and avant-garde technology. This Industrial Three Piece Ball Vave is perfect for handling sticky and viscous fluid, slurries and highly corrosive and hazardous substances. Obtainable in diverse specifications, this ball valve can also be personalized as per the stipulations provided by the clients.

Features

  • High Quality
  • At cost effective price
  • Optimum Performance
  • Robust Design

Temperature LImits

Shell Matt.

Lower limit

Upper limit

ºF

ºC

ºF

ºC

Cast Lron (Graded)

-20

-5

410

210

A216 GR WCB

-20

-10

650

343

A352 GR LCB

-50

-46

800

470

A351 GR CF8

-425

-254

850

454

A351 GR CF8M

-425

-254

1500

81

 APPLICATION

  • Petrochemical Industries
  • Pharmaceutical Plants
  • Oil Industries
  • Petroleum Refinery
  • Power Plants
  • Thermal & Gas
  • Fertilizers & Agro Chemicals
  • Steel Plant
  • Paper Industries
  • Cement Industries
  • Cryogenic Services

SALIENT FEATURE

  • The valves are designed to ensure that ball port fully aligns with body throat port in fully open position.
  • The blow out proof over size steam operated the valve safety even at high differential pressure a seal enabling replacement of gland packing even when valve may under pressure.
  • Bi- directional shut off
  • Ball is a heart of ball valves. Owing to the accurate manufacturing the ball is extremely spherical. lts mirror finish surface increase the sealing life and low operating torque.
  • High flow capacity with negligible pressure loss.
  • Unique flexible lip seats exert continues sealing pressure automatically compensate for wear and for changes in temperature pressure, and provide extremely high cycle life.
  • Full port valve offers and resistance to flow operation is always easy, even when valves are operated infrequently.
  • The valve wrench (handle) is always parallel the flow passage of the valve.
  • Joints between bodies and body connectors in the case of flanged valve do not affect normal bolting or unbolting connection pipe works.
  • Body design provides adequate resistance against any permanent distortion under hydrostatic test and working condition.
  • Screwed end valves intended for assembly with pipe threads according to lS-554/BSP thread.
  • Flanged end valves are supplied undrilled unless other wise specified by the customer at the time of placing order with us along with standard in which drilling is desired

DIMIENSION

Size


ǾB

ǾB1

F/F

CS

CLH

CL

ǾF

ǾRF

PCD

T

ǾD

N

INCH

MM

Port

Port











1/2

15

12.5

10

108

42

68

164

88.9

34.9

60.3

11

15.9

4

3/4

20

17

12.5

118

48

75

128

98.4

42.9

69.9

11

15.9

4

1

25

24

17

127

51

76

178

107.9

50.8

79.4

12

15.9

4

1-1/2

40

37

24

165

76

99

234

127

73

98.4

14

15.9

4

2

50

49

37

178

84

105

232

152.4

92.1

120.8

16

19

4

2-1/2

65

64

49

191

105

132

296

177.8

104.8

139.7

18

19

4

3

80

75

64

203

115

142

297

190.5

127

152.4

19

19

4

4

100

98

75

229

132

170

394

228.6

157.2

190.5

24

19

8

5

125

123

98

254

187

205

535

254

186

216

24

22.2

8

6

150

148

123

297

211

235

525

279.4

215.9

241.3

25

22.2

8

8

200

198

148

292.1

275

308

715

342.9

269.9

298.4

29

22.2

8

10

250

248

198

330.2

345

388

*

406.4

323.9

362

30.23

25.4

12

12

300

298

248

609.2

479

529

*

482.6

381

431.8

32

25.4

12
